- Ropes and

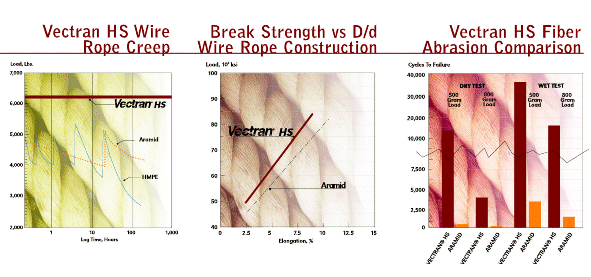

Vectran HS is solving performance problems in critical marine, military, and industrial rope and cable applications. High strength with no creep allows manufacture of high performance ropes that are stable to extended loads. Superior abrasion resistance, excellent moisture resistance, and exceptional property retention over broad ranges of temperature and chemical environments, provide solutions to industrial wear and degradation problems experienced with existing fiber products. Vectran HS is an outstanding candidate for replacement of steel and stainless steel constructions.
Archers have benefited from bow strings made with Vectran fiber. Offering archers increased arrow speed with no measurable creep, Vectran fiber has solved problems associated with string relaxation.
Electronic Uses Require a Unique Fiber
Vectra ® LCP polymer is used world-wide in
precision molded electronic products. The same LCP in
Vectran HS fiber form is an excellent candidate for
printed circuit boards, fiber optic strength members, and
conductor reinforcements. High dielectric strength coupled
with elevated temperature resistance and outstanding
moisture resistance provide new levels of electrical
efficiency in prevention of current leakage. This
combination along with excellent dimensional stability and
low CTE provide a unique fiber for specialized electronic
Vectran fibers are an excellent option for recreation and leisure products such as sailcloth, reinforced hulls, fishing poles and lines, golf clubs, bicycle forks, skis, tennis racquets, snowboards, and
paragliders. Performance is critical in many specialty sporting goods applications. Of particular importance are the unique vibration damping characteristics of Vectran fiber combined with high strength, minimal moisture absorption and excellent flex/fold/abrasion/impact resistance
The first use of Vectran fiber was for demanding and specialized military applications. The unique properties of this high performance fiber satisfies many of the military and aerospace needs of today. In fact in July 1997 the airbags above, made with Vectran fibers were deployed to cushion the Pathfinders successful landing on the surface of Mars. A stellar-strength fiber, Vectran is lightweight and stable providing superior load handling characteristics for tow ropes, cargo tie-downs and inflatables
textiles and composites

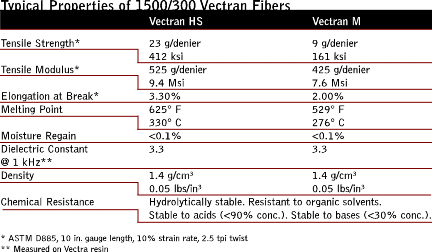

The Vectran fiber family is available in a range of deniers for textile and composite processing and offers new options in design and material selection. Vectran HS fiber offers benefits for
applications requiring high strength, vibration damping, low moisture
absorption, and low CTE. Vectran M fiber is a high modulus thermoplastic matrix fiber for applications requiring high impermeability, excellent property retention over a broad temperature range, and low moisture absorption.
Vectran Fiber brings unique solutions to industrial applications. Stability to most chemicals allows the manufacture of chemically resistant packings and gaskets. Users of protective apparel such as gloves and workwear benefit from excellent cut and stab resistance, elevated temperature resistance, outstanding flex/fold resistance, and durability to multiple wash/dry cycles even in the presence of bleach.
For example, the meat processing industry suffers from some of the highest incidents of hand cuts and abdominal stabs. Worker safety is improved when garments provide increased cut resistance or stab resistance. Because of the high cost of safety apparel and the high costs of injuries, meat processing companies are sensitive to cost/performance of safety
workwear. Aramid fibers have poor resistance to bleach and UHMWPE fibers are sensitive to high temperatures associated with drying. Therefore, the cost/performance of
safety wear improves when garments can resist exposure to bleach and are durable enough to resist multiple wash/dry cycles without loss of strength or shape due to shrinkage. Vectran fiber workwear is meeting the cost/performance needs of this industry
