Silver coated nylon yarns, flock and fibers

Statex Shieldex silver coated nylon polyamide yarns, flock and fibers

Statex® Production and Manufacturing Company, based in Germany, specializes in metallizing nylon yarns and fabrics with 99% pure silver. Statex also plates with silver/copper, silver/copper/nickel and silver/copper/tin based on application needs.

During the past 2000 years, many civilizations have recognized the properties of silver in preventing diseases. For instance, the Romans used silver nitrate therapeutically, and the hermetic and alchemical writings of Paracelsus speak of the virtues of silver as a healing substance. In the 1800s, several physicians discovered the antibacterial (anti germ) qualities of silver and applied them to their practice of medicine.

Electrical Conductivity

Medical
For DLT- electrodes, Statex silver-coated yarn is suitable to record retinal potentials from the cornea. EMI/RFI Shielding. Silver provides excellent conductivity that yields both Electromagnetic Shielding (EMI shielding) and Radio Frequency Shielding (RFI) shielding. Applications using Statex fabrics, fibers and yarn include fabric-over-foam gaskets, cable shielding, conductive tapes, filters, flexible shielded enclosures and packing material. For architectural room shielding systems please visit www.emscreen.de. For custom applications like electro smog shielding material visit www.biologa.de

Anti-static
Statex plated fibers, yarns and fabrics allow for static discharge when incorporated into antistatic carpet systems, clothing as well as clean room and medical clinic environments.

Radar and infra red
When used in products manufactured to military standards, Statex fabrics prevent detection by infra-red and radar. Applications include protection clothing, tents, radar reflection and radiating antenna.



SHIELDEX® Yarns

SHIELDEX® sd.rd   33 10 Z100
SHIELDEX® br.rd   33 12 Z100
SHIELDEX® br.rd   44 12 Z100
SHIELDEX® br.tr    78 18 Z200 Silverline
SHIELDEX® br.rd 110 24 Z200 h.ten.
SHIELDEX® br.rd 110 24 Z200 h.ten. HC
SHIELDEX® br.tr  110 34 S600 x 2 Z 550 knit shield
SHIELDEX® br.tr  110 34 S600 x 2 Z 550 knit shield HC
SHIELDEX® br.rd 235 34 S500 x 2 Z 400 h.ten.
SHIELDEX® br.rd 235 34 S500 x 2 Z 400 h.ten. HC
SHIELDEX® br.rd 235 34 S500 x 4 Z400 h.ten. HC

SHIELDEX® blended & twisted yarns:

22/1 dtex with 113/32 PES h.t.
33/12dtex + 80/36dtex PES
44/12 dtex + 113/32 PES h.t.
110/34 dtex 2-ply (Knit Shield)



Metallized SHIELDEX® Fibers:

Silver coated Nylon for permanent anti-static performance in carpets,
non wovens, felts, woven and knitted fabrics etc. SHIELDEX® Fibers
can be mixed with all natural and synthetic fibers by means of twisting,
intimate spinning mixes and non-wovens. The program consists of:

SHIELDEX® count cut length mm resulting count
dtex   1.5   40 mm dtex   1.8
dtex   3.3   40 mm, 70 mm dtex   3.8
dtex   4.3   40 mm, 70 mm dtex   4.8
dtex   7.3   70 mm, 120 mm dtex   8.0
dtex 22.0   70 mm, 120 mm dtex 23.0





Statex Shieldex is the world's premium manufacturer of advanced textiles

Plated Fabrics

Shieldex® plated fabrics are available both in woven and non-woven varieties. They range from Silver, Nickel-Copper to Tin-Copper. They are available in plain or rip-stop weave---- Shieldex® plated fabrics are unique in their plated quality. Excellence in production is guaranteed.

Medical, Military & Industrial Applications

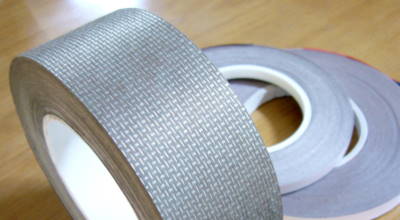

Shieldex® Ultra-Flex Conductive Fabric Tape
(available with and without mask)

Ultra-Flex Shielding Tape provides

  • High flexibility and durability

  • High conductivity & shielding effectiveness

  • Very strong conductive adhesive system

  • End user safety, no more cut fingers from razor sharp foil edges.

  • Easy cutting & processing without fraying that are typical with rip-stop fabric tapes.

  • Total galvanic compatibility with all mating surfaces, which is not always possible with other typical plated fabrics.

New in the program are conductive hook + loop fasteners, zippers and safety pouches.

Conductive fabrics for shielding purpose



Conductive Ultraflex shielding tapes

ULTRA FLEX TAPE

Material

Structure

metal plating

Info

mask

width mm

roll length m

Nylon non woven

PBN II

Cu/SN

conductive

w/out

6

33

Nylon non woven

PBN II

Cu/SN

conductive

4 mm

6

33

Nylon non woven

PBN II

Cu/SN

conductive

w/out

8

33

Nylon non woven

PBN II

Cu/SN

conductive

w/out

10

33

Nylon non woven

PBN II

Cu/SN

conductive

8 mm

10

33

Nylon non woven

PBN II

Cu/SN

conductive

10 mm

12.5

25

Nylon non woven

PBN II

Cu/SN

conductive

w/out

20

33

Nylon non woven

PBN II

Cu/SN

conductive

16 mm

20

33

Nylon non woven

PBN II

Cu/SN

conductive

w/out

38

33

Nylon non woven

PBN II

Cu/SN

not cond.

w/out

41

abt. 100

Nylon non woven

PBN II

Cu/SN

conductive

w/out

50

20

Nylon non woven

PBN II

Cu/SN

conductive

w/out

80

20



Shieldex® Ultra-Flex Tapes are both flexible and tear resistant. Manufactured from non-woven polyamide continuous filaments that are metallized with copper and tin, Ultra-Flex Tape has extremely high conductivity as well as durable corrosion protection. EMI shielding effectiveness is an average of 80dB (Military Standard 285, modified).

A conductive adhesive on the bottom bonds the tape to the substrate. An optional masking layer can protect the tape during painting and spraying operations. Both versions of the tape are available in different widths and lengths. Please refer to the detailed information in the data sheets.

Ultraflex shielding tape
production of silver coated yarns for Ultraflex tapes

Shieldex® Ultra-Flex Tape delivers:

  • flexibility and durability
  • high conductivity & shielding effectiveness
  • abrasion resistant
  • very good peel strength from conductive adhesive system
  • manufacturing safety; no more cut fingers from razor-sharp foil edged tapes
  • easy die cutting & processing without that fraying that is typical with rip-stop fabric tapes
  • Total galvanic compatibility with all types of mating surfaces, which is not always possible with other plated fabric tapes and foils.



Conductive filler for adhesives & elastomers

Plated fibers, yarn, woven & non-woven fabrics
Electroless, galvanic or combination treatments, also with variable layer thickness tailor-made to customers' needs. Flexibility and adhesion enable Shieldex® metallized fibers, yarns and fabrics to withstand all textile treatments, such as; spinning, weaving, needle felting, and sewing.

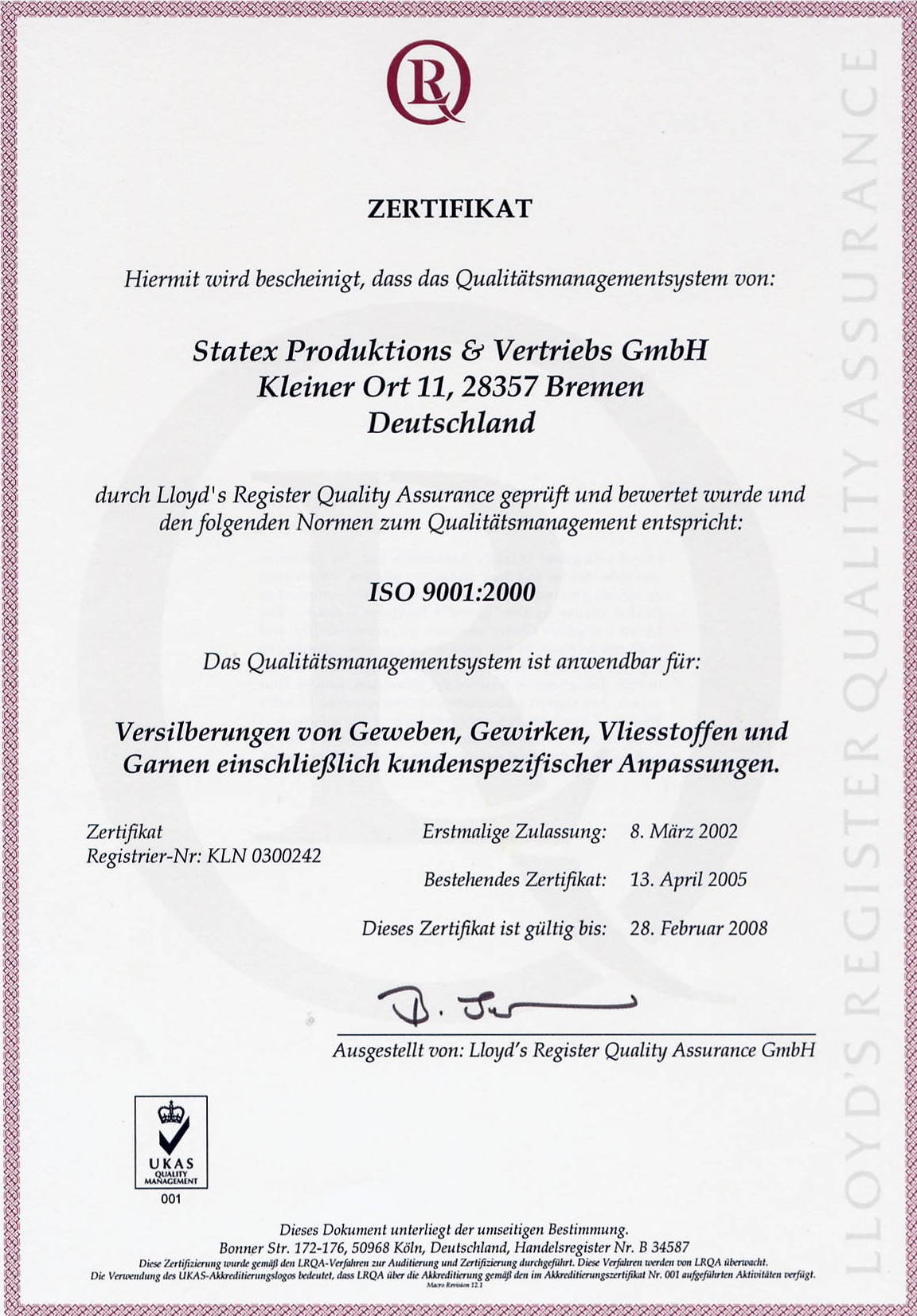

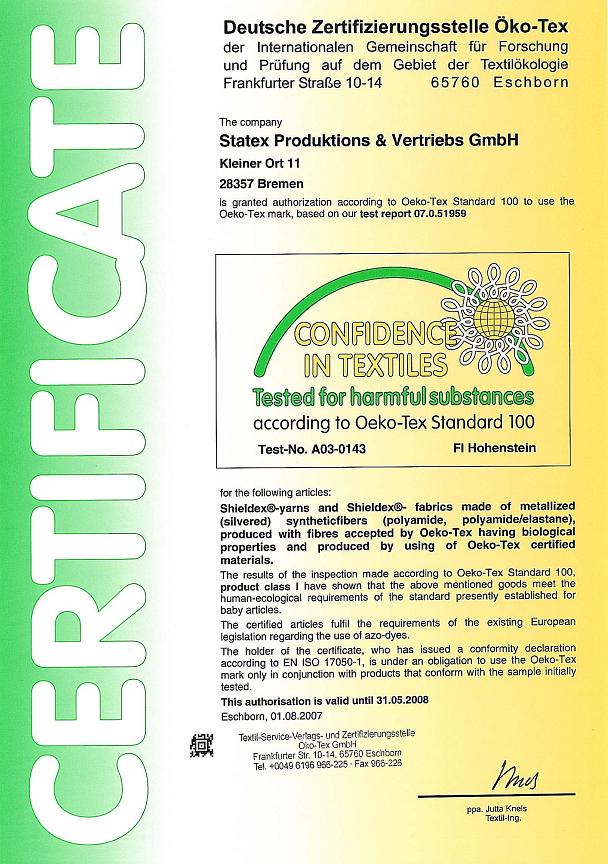

Statex Shieldex ISO 9001 2000 certificate                  Statex Shieldex Oekotex certificate

ISO 9001 2000      Oekotex certificate
