Natural fiber products - Swicofil's target products

Synthetic fiber products - Swicofil's target products
Fancy yarn Flocked yarn Chenille yarn Metallic yarn Glowing yarn

Metallic yarns



Chemical
characteristics
Production
process
Available
types
Color
sheet



Chemical characteristics

Ironing 110C,15 sec
Dry Heat 180C, 60 sec
Alkali, Solution of 1st Process P.H.4.7,C, 30 min
Hot Water 90C, 30 min
Hand Washing 0.5 % soap
0.2 % Sodium Carbonate Anhydride
60C, 30 min.
Rubbing 200g, 100 times
Dry Cleaning Trichloroethylene
Perchloroethylene
Petroleum Benzene
25C, 30 min.
Steaming 100C, 40 min.
Boiling Water 30min.-1hr.
Acid 2% Oxalic Acid, 60C, 10min.
2% Acetic Acid, 60C, 10min.
Scouring For Nylon,
Polyester, Rayon,
Acetate&Cotton
Soda Ash, 1g/l
60C, 30 min.
Customs tariff number 5605.00.1000



Production process

Coating process : Aluminum metallized PET ( polyester ) film is lacquered with protective epoxy resin to keep a shiny looking metallized surface. In case of Gold and colors, appropriate quantity of metal complex dyestuffs are mixed with Resin measured by an accurate electronic scale. Our most concern, tension control, starts at this process. Our machine is equipped with fully automatic tension control, temperature control and web guide devices Coating process metallic yarn Modern Tex
Wide cutting / Pancake process : Protective lacquered film is cut into 2 to 5 wide pancakes. Our machine is equipped with fully automatic tension control, web guide and oiling devices. wide cutting / pancake process metallic yarn Modern Tex
Micro slitting & winding process : Wide cut pancake roll is being slit into various sizes while film passes through a cutting head and being wound on spools ( Max. 450pcs of spools ). This process requires intensive tension control. Our machine is equipped with fully automatic tension control and oiling devices. Moreover our Korean technician is highly skilled for more than 30 years to control slitting tension. micro slitting winding process metallic yarn Modern Tex
Bobbin winding process : 20D PA-6 / Nylon mono filament yarn is spooled on well balanced bakelite bobbins. bobbin winding process metallic yarn Modern Tex
Single/Double covering process : M-type metallic yarn is covered/twisted/supported with 20D PA-6, 2ends at 280TPM +/- 5. TPM is regularly checked with Stroboscope. single/double covering process metallic yarn Modern Tex
Single Covering process : Viscose rayon, or Polyester yarn is single covered with M-type metallic yarn. single covering process metallic yarn Modern Tex
Vacuum setting process : MH, MHS and ST types are steam set to remove self-tangling effect. vacuum setting process metallic yarn Modern Tex
Cone winding process : MX, MH, MHS and ST types are re-wound into tapered paper cones. Our tension control by an accurate gauge is being finished at this process. cone winding process metallic yarn Modern Tex



Available types

M TYPE
Slit metallized Polyester film ( aluminum metallized and protective epoxy resin coated ) into various sizes of 1/32, 1/69, 1/85, 1/92, 1/100, 1/110 and 1/134 wound on ABS bobbin ( flange )
Basic colors : Silver and Gold.
Available colors on request
Brown, Blue, Green, Pink, Purple, Red, Black etc.
Special colors on request
Rainbow/pearl, Multi-color, Fluorescent, Transparent, Mat color etc.
Available thickness : 12Mic., 15Mic./PA film, 16Mic./non-metallized, 25Mic., 30Mic./Laminated etc.
Available width : 1/134, 1/110, 1/100, 1/92, 1/85, 1/69 and 1/32.
ABS bobbins/spools
M-type to be supplied in the weight of 100g, 150g and 300g per spool.

Use
This is widely used in pre-dyed textiles (weaving), embroidery ,velvet , laces, ribbons, accessories, industrial subsidiary materials, interior decoration, kitchen scrubber etc.



MH TYPE
Supported Yarn

M-type metallic yarn supported with Viscose rayon 120D or Polyester filament yarn 150D. To be supplied 500g/cone after vacuum steam setting process to prevent from self-tangling problem.  This product feels soft and has sober lustrous effect.
Use
This product is used in sweaters ,knitwear , tricots, weaving, embroidery, high fashion and other clothes.



MX TYPE
Twisted Yarn
M-type metallic yarn supported with PA-6 20D/1F X 2ends ( 1 end covered clockwise, 1end covered counterclockwise at 280TPM ) and wound 500g per conical tube ( cone ). The yarn has strong tensile strength and graceful, lustrous color.
Use
This product is used in sweaters, knitwear, tricots, pre-dyed textiles weaving), embroidery, stocking, accessories, industrial subsidiary materials etc.



MHS TYPE
Viscose rayon or Nylon yarn round covered with M-type metallic yarn at the spaced regular intervals. To be supplied 250g, or 500g/cone after vacuum setting process to prevent from self-tangling problem.



ST TYPE
Viscose rayon, or Polyester filament yarn round covered with M-type metallic yarn at the fully closed regular intervals. To be supplied 150g, 200g, 250g, or 500g/cone after vacuum steam setting process to prevent from self-tangling problem.





Color cards

M type MH type MX type ST & MHS type
Moderntex metallic yarn M Type Moderntex metallic yarn MH type Moderntex metallic yarn MX-type Moderntex metallic yarn ST & MHS types Moderntex metallic yarn MHS type
Moderntex metallic yarn technical yarns
  technical yarns
Metallic yarns with silver or gold glitter effect and mother of pearl effect specials







TYPE

WIDTH

Flat metallic yarn

TWISTED YARN

LENGTH/KG

Silver / Colors

DENIER

Silver / Colors

M

1/32

1/69

1/85

1/100

1/110



65,000M / 61,000M

140,000M / 130,000M

176,000M / 163,000M

204,000M / 191,000M

225,000M / 209,000M

138D / 147D

64D / 69D

51D / 55D

44D / 47D

40D / 43D

MX

1/69

1/85

1/100

Nylon mono

Filament yarn

20D/1F x 2

86,000M / 82,000M

106,000M / 103,000M

104D / 109D

85D / 87D

MH

1/100

Viscose Rayon.

Or polyester(PFY)

75D, 120D, 150D

78,000M / 76,000M

115D / 118D

MHS

1/100

Viscose Rayon.

Or polyester(PFY)

75D, 120D, 150D

55,000M / 54,000M

164D / 167D

ST

1/64

1/69

Viscose Rayon.

Or polyester(PFY)

75D, 120D, 150D

39,000M / 38,000M

39,500M / 38,500M

230D / 237D

228D / 234D

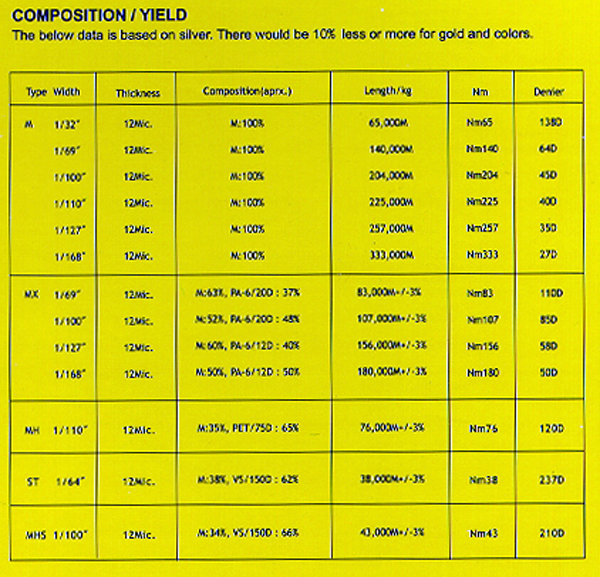

Moderntex Metallic yarn composition and yield information

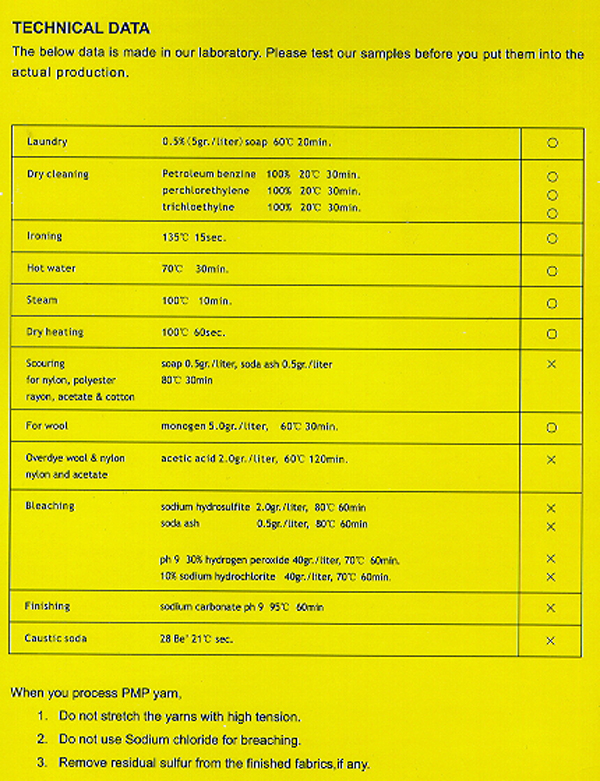

 Moderntex metallic yarn technical data

Bobbin size (for M-type)

1) 80mm/OD x 47mm/ID x 98mm/L : Approx. 300grms./Bobbin.

2) 70mm/OD x 42mm/ID x 68mm/L : Approx. 150grms./Bobbin.

3) 56mm/OD x 30mm/ID x 64mm/L : Approx. 100grms./Bobbin.
