Hazardous accidents may occur in any production site. Electro static charge build-up is one of such causes of hazardous accidents in many industries. For example: explosion ignited by discharge, deteriorated productivity, inferior quality by malfunctioning of system, contamination and etc. |
Kuraray developed Clacarbo, an electro-conductive fiber containing carbon, just when static electricity had been acknowledged hazardous problems to various industries. It is basically polyester filament having a special structure containing electro-conductive carbon. This anti-static material with suitable structure and function conforms to the static electricity safety guide of the Ministry of Labor: RIIS-TR-78-1.
Application field： petroleum refining , oil tankers, gas stations, thermal power plant, manufacturing sites of solvent, painting, coal mining industry, semi-conductor, etc.
How static elimination can be made
 Static charge generated on a garment can be eliminated by corona discharge through Clacarbo. This function is hardly influenced by the material of underwear worn. |
 |
 Because static charge elimination proceeds by corona discharge, the anti-static function can be maintained unaffected even under low humidity environment in which more static charge accumulation is generated. |
 |
Clacarbo has excellent durability standing with repeated washings as well as chemical resistance and resistance to the sunlight.

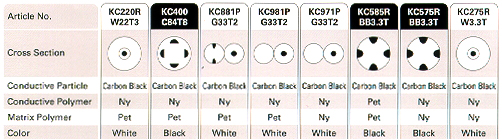

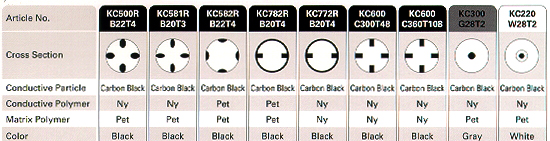

The types of
material cross sections preventing static electricity.
For the safe working environment
Filament Black Type
| Surface conductive type | Core conductive type | quadrangular exposed type | ||||
| Suitable for gaining
specifically low resistivity. KC-792 has resistivity range of 105-6. |
Carbon impregnated in core
part of fiber. No fall of carbon and presents high tenacity. |
quadrangular exposed type will offer the well balanced property of low resistivity and high tenacity. | ||||
| KC-782R B20T4 | KC-792R B22T4 | KC-300 G28T2 | KC-220 W28T2 | KC-400 C22T2 | KC-500R B22T4 | KC-582R B22T4 |
 |
 |
 |
 |
 |
 |
 |

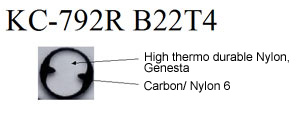

The high end class material with low resistivity as well as thermal durability．
- Highest performance material hiring Genesta, high thermal resistivity Nylon developed by Kuraray．
- Lowest resitivityh(105-106)
- Durability against bending (Low Young, modulus)
- High resistance against elongation and abrasion
- Superb washability
- Stable with no shrinkage in hot water bath washing
- High thermal resistivity

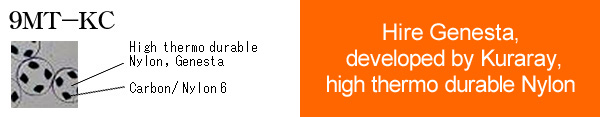

High performance gained by Genesta
Genesta has property of lower crystal elasticity and lower glass transform point than polyester or nylon.
Which offers a material yarn to make the higher thermal durability and soft texture in finished fabric. Moist ratio with 1.76 which offers easiness of dyeing and finishing and stable in the use.
| Materials | Genesta | Polyester | Polyamide６ |
| Young modulus (cN/tex) | 55.6 | 90～160 | 20～45 |
| Melting point °C | 265 | 265 | 220 |
| Glass Transform Point°C | 120 | 70 | 50 |
| Crystal Elasticity (Gpa) | 31 | 125 | 142 |
| Typical Hydro-Ratio 65%RH | 1.76 | 0.4 | 4.5 |
Filament White type
| KC-220 | KC-971U | ||
 |
Tri-layered type using carbon presents white color. |  |
Supplied as POY used for carpet application. |
3 types of Staple
| Polyester Black (KC-585S) |  |
| Nylon Black (KC-575S) |  |
| Nylon White (KC-375S) Conductive layer with metal oxide |
 |
 |
- Outstanding low resistivity (105-106Ω/cm).
- Not exposing carbon on surface, no fall of of carbon layer.
- Outstanding thermo durability.
- Outstanding Chemical resistance.
- Low Young modulus with durability against bending.
