Innovative conductivity solutions to boost your textile and industrial product's
performance
Solving conductivity issues in
textile products with conductive speciality yarns and monofilaments
There are occasions where the quality of your newly
created product could get a real boost and advantage over your competitors
if this product had the capability to lead away electrostatic
charges.
This ability would solve a lot of static charges problems and does allow
you to design innovative new solutions to the ever changing market demands.
Synthetic conductive
filament yarns
Whatever your production process, your equipment, the strains they represent,
we are able to offer you the adapted solution to implement its antistatic
(and antibacterial) fibres. In addition to the cut staple fibre, the slivers, the roving or other spun yarns
our supplier partner offers now a wide range of continuous filaments too.
- Condufil
monofilaments (Cabelec and LLDPE mixed polymer)
Condufil monofilament
For applications in the big bags packaging industry you
may need to avoid electrostatic charges. This is where our Condufil - a
mix of Cabelec polymer with LLDPE polymer - comes into action.
Actually we are able to supply two counts:
Both monofilaments have the following specs:
Density:
1,1
Color:
black
melting temp.: 125°C
tensile strength: 8.5 cN
Ohm:
800 K
Other
conductive yarns possibilities are:
-
Fine Inox wire
This fine Inox wire is available in a mixture with polyvinyl alcohol
PVA in a count of 560 dtex. The PVA yarn is wrapped around the Inox to
enable a good workability. In the finishing process the PVA part is
dissolved and as a result one gets a 100% Inox fabric / product.
Great advantage of Inox is that it does not rust
Silver coated polyamide 6 or 6.6 mono- and multifilament
In different counts we can provide you a PA 6.6 or PA 6 mono- and
multifilament yarns which are coated with pure silver. These
products have an excellent conductivity of < 100 Ohm
|
|
|
PA
6.6
|
silver
|
|
Physical
data:
|
-
specific
gravity:
-
solubility
in water:
-
reactivity
in water:
-
appearance
+ odour:
-
melting
point:
|
|
-
10.4
-
insoluble
-
none
-
grey
metallic, no odour
-
966°C
|
|
Metallization:
|
The
monofilament is completely coated with pure silver. The adhesion
is extraordinary well – the silver is rooted in the substrate.
|
|
Mechanical:
|
Metallization
of the material does not change original properties of the
polyamide like extensibility, break strength etc. Silver coated
monofilaments can be processed like any normal PA monofilament
|
|
Electrical:
|
Depending
on the fiber diameter values of < 100 ohm of electrical
conductivity are measured.
|
Belltron
| Kanebo Belltron is a high
performance, excellent conductive fiber developed from Kanebo
conjugate technology. |
Cross sectional photo of Carbon Belltron |
Cross
sectional photo of White Belltron
Type 638
Type 632 |
Blending just a small amount of
Belltron will prevent static problems like
(1) static shocks you experience
when walking on carpets and touching door knobs, or getting
out of cars,
(2)clinging of clothing to your
body, and
(3)attracting of dust and soil.
|
For more detailed information on Belltron please
follow this link
We are also in a
position to offer mixed yarns of Polyester multifilament
yarn with intermingled Belltron components. In this way it is possible
to strengthen the yarn for easy weaving - possible for warp and for
weft - to suit your requirements and to ensure an excellent runability
of the yarn.
Please note that
all these yarns are never produced on stock - only on specific demand. Minimum
order is 100 bobbins = abt. 120 kgs.
For more details
please contact us.
|
Shielding
and conductive yarns
Offering shielding and
conductive filament yarns which are engineered to run well in
weaving warp and weft. The flexibility to produce well
performing yarns for your application makes BEAG to a world
leader in shielding and hi-tech yarns.
Polyester
with Kanebo Belltron
Intimate mixtures of
polyester filament yarns with Kanebo Belltron products in counts
from dtex 50 up to dtex 610. The polyester provides the textile
properties according to your final product requirements and the
Kanebo Belltron component the necessary conductivity or
shielding performance.

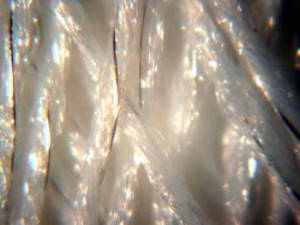

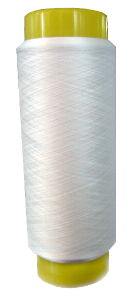

Polyester
filament with Copper monofilament
|
|
Intimate mixtures of
polyester filament yarns with highly conductive copper
monofilaments which may be coated with silver or polyurethane
products in counts from dtex 50 up to dtex 610. The polyester
provides the textile properties according to your final product
requirements and the copper monofilament component the necessary
conductivity or shielding performance.
Here are a few application
ideas of BEAG conductive yarns:
-
lining fabric (for
bags of sensitive electronic equipment or in jackets for
people with heart pace makers)
-
underwear
-
outerwear
-
shirting, blouses
-
protection suits (for
maintenance staff in HF environment)
-
tents (for military
applications and anti-bomb squads)
-
tarpaulin fabric (for
house roofs and wall coverings)
-
curtains (as
protection against electromagnetic fields or interferences
in offices, homes, hospitals etc)
-
data transfer fabrics
We are able to tailor the
yarn exactly to your products needs. Please let us know what
performance you require. |
|
Swicofil is your partner to help you improving your
textile and industrial textile product performance, to find new solutions
for existing products, to explore new product design possibilities.
Long term experience in the field of synthetic and natural
yarns and fibers enables us to guide you in the right direction. Knowing
well the properties and performance of all the yarns and fibers and after
many years of excellent contacts with the synthetic and natural fiber
producers we are confident to be able to assist you.
We are not a consulting company and we are not a
charity organization - at the end of our
common development it is our wish to become your regular supplier for these
yarn and fiber specialities.
|
