BEAG
friction textured yarn
Polyamide (PA)
Single- and multiple-yarns, with or without post-twisting
17 dtex to 235 dtex
-
Fine: 17 f 3 – 22 f
7
-
Standard: 33 f 10 – 44 f 13 – 78 f 17 – 78 f 24 – 110 f 34
Micro: 20 f 20 – 22 f 14 – 33 f 34 – 42 f 46 – 44 f 34 –
-
78 f 68 – 156 f 102
Specialities: bacteriostatic yarns
-
Polyester
(PET)
Single- and multiple-yarns, with or without post-twisting
33 dtex to 340 dtex
Standard: 33 f 24 – 56 f 24 – 76 f 24 – 78 f 48 – 100 f 36 –
100 f 72 – 110 f 36 – 150 f 48 – 167 f 36 – 167 f 48 – 220 f 68
Micro: 50 f 88 – 84 f 68
Spun-dyed: 50 f 24 black – 76 f 24 black –
220 f 48 coloured – 240 f 36 coloured
Specialities: flame-retardant and bacteriostatic yarns
Colour Yarns (PA,
PET, PP)
All yarns can be delivered on dyeing-bobbin supports
If you need we can also offer bobbin-dyed yarns
Polypropylene (PP)
Single- and multiple-yarns, with or without post-twisting
56 dtex to 167 dtex
Standard: 56 f 32 – 78 f 24 – 78 f 48 – 167 f 32
Specialities: just as spun-dyed yarns available
Carbon Fibres (CF)
Texturized blended yarns with carbon starting from 50 dtex
function: with conductive and anti-static effect
BEAG
airtextured yarn
Polyamide (PA)
Single- and multiple-yarns, air-jet textured and tangled
56 dtex to 5000 dtex
Specialities: High-tenacity yarns and blended yarns with carbon
Polyester
(PET)
Single- and multiple-yarns, air-jet textured and tangled
56 dtex to 5000 dtex
Specialities: High-tenacity yarns and blended yarns with carbon and spun-dyed yarns
Polypropylene (PP)
Single- and multiple-yarns, air-jet textured and tangled
56 dtex to 5000 dtex
Specialities: spun-dyed yarns and blended yarns
Carbon Fibres (CF)
Blended yarns, air-jet textured and tangled
starting from 50 dtex
Function: with conductive and anti-static effect
Metal Fibres (MTF)
Blended yarns, air-jet textured and tangled
starting from 150 dtex (based on copper with 0.04 mm in diameter)
Function: electric-conductive and electric-screening effect
BEAG
Twisted Yarns
Single- and multiple-twists made of:
Polyamide (PA), Polyester
(PET), Polypropylene (PP) and Silk (SE)
22 dtex to 4800 dtex
80 tpm to 1700 tpm
Blended yarns mainly running with a filament yarn as core
Blended Yarns
Multiple-twists made of:
Polyamide (PA), Polyester
(PET), Polypropylene (PP), Elasthane (EL), Cotton (CO), Silk (SE), High-Tenacity Yarns
(HT), Melting Yarns, Water-Soluble Yarns (PVA), Cationic Yarns (CAT), Flame-Retardant Yarns (FR),
Reflecting Yarns, Carbon Fibres (CF), Copper Yarns (CU), Metal Fibres (MTF) and Aramid (AR)
22 dtex to 4800 dtex
80 tpm to 1700 tpm
Blended yarns available as single-twist, cross-twist and covering-twist
Specialities
Carbon Yarns (CF)
Blended yarns available as blends, twisted, textured, air-jet textured and tangled
starting from 50 dtex
In blends with Polyester (PES) and Polyamide (PA) for:
- hospital and clean-room clothes
- mattress-covering fabrics (house dust mite proof)
- automotive applications
Function: with conductive and anti-static effect
Copper Yarns (CU)
Blended yarns available as twisted, air-jet textured and tangled
starting from 150 dtex (based on copper with 0.04 mm in diameter)
In blends with Polyester (PES) and Polyamid (PA) for:
- textile heating-threads and -fabrics
- electric-screening fabrics
- textile bandages (for supervision of body functions)
Function: electric-conductive and with low electric-resistance
Reflecting Yarns
Blended yarns available as twisted
1220 dtex to dtex 1800 dtex
In blends with water-soluble yarns (PVA) for:
- protective clothes
- safety clothes
- children’s clothing
Function: reflection at light exposure

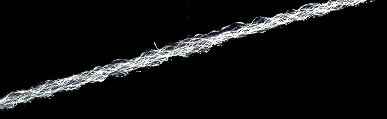

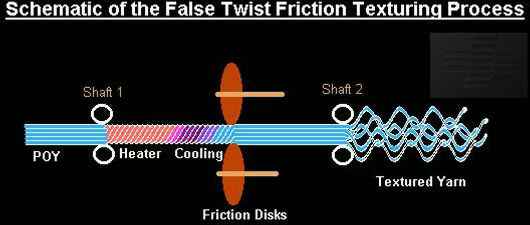

The
above two pictures are property of Udo
Schweizer and they are his copyright. Please visit his great homepage on
texturizing techniques by following the link to http://www.polyspintex.com/ups/text01.htm
